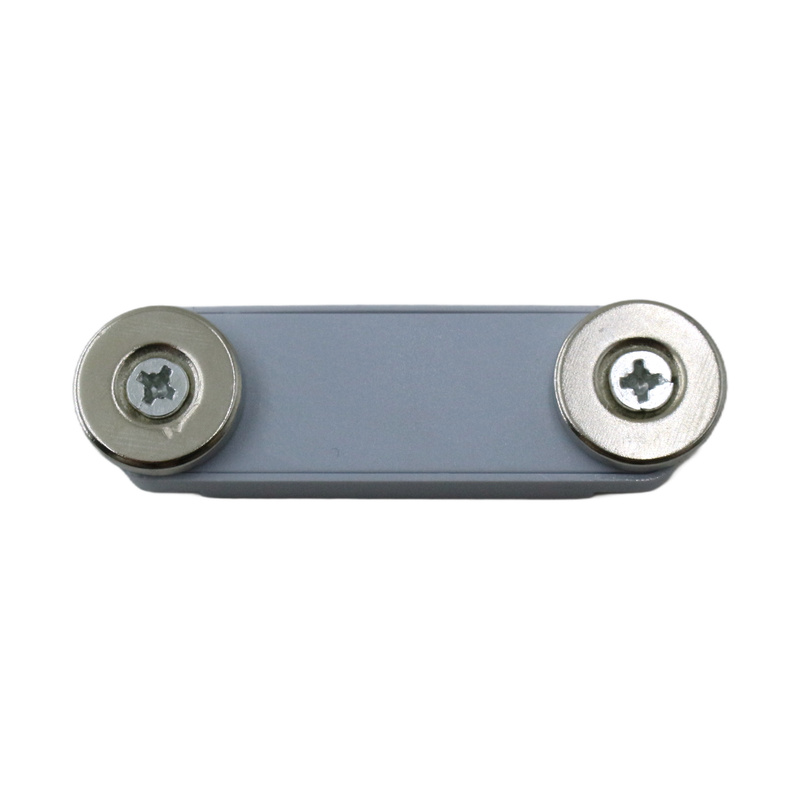

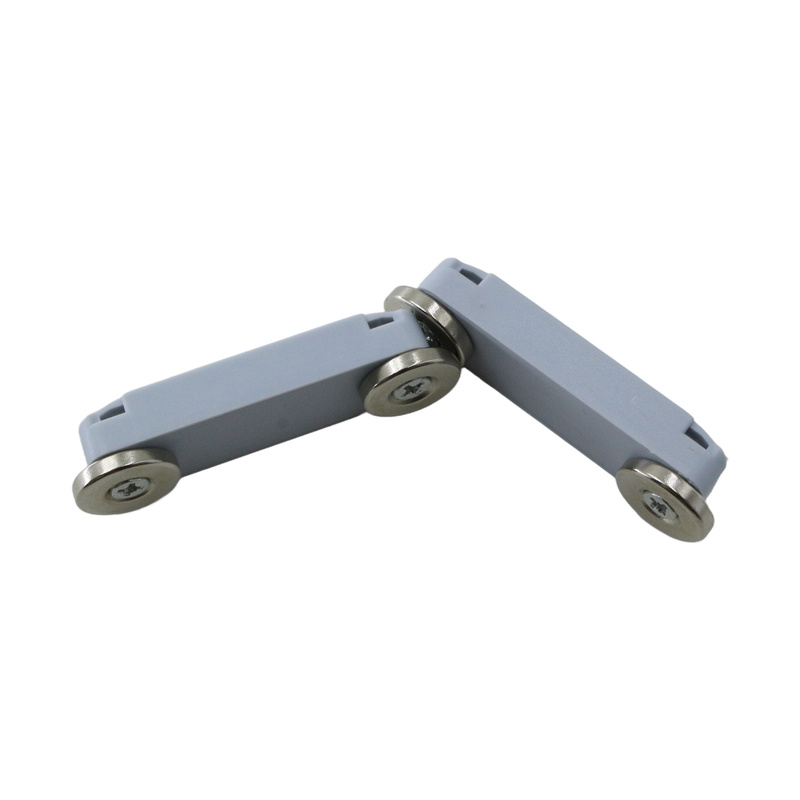

HY-UC5016 Magnetic On-Metal RFID Tag
RFIDHY’s Magnetic On-Metal RFID Tag is engineered for reusable UHF asset tracking. Instead of relying on a permanent adhesive bond, it uses integrated magnetic force to attach securely to ferromagnetic assets, turning the metal surface itself into a stable mounting platform. This makes it a genuinely reusable UHF RFID tag for dynamic metal environments where asset srotate, configurations change, and temporary identification is required.
Repositionable, asset-safe mounting: The magnetic attachment allows the tag to be moved repeatedly across metallic assets without leaving adhesive marks or requiring tools: ideal for tools, containers, racks, molds, and equipment housings. Stable UHF performance on metal: The on-metal RFID tag is built on engineered structures that maintain
stable UHF performance on metal, preserving reliable read range and signal consistency.
Leave your contact detail now to get the latest price!
Applications
- Metallic asset tracking (tools, machinery)
- Container tracking
- Logistics and automotive
- Warehouse shelf and rack identification
Personalization
- Customized specific encoding
- Customized printing of logo, text, barcode etc
Features
- On metal RFID tag
- Available with EPC encoding, barcode and human readable content
- Ideal for Large Scale Production and Application
| Physical Specifications | |
| Type | HY-UC5016 |

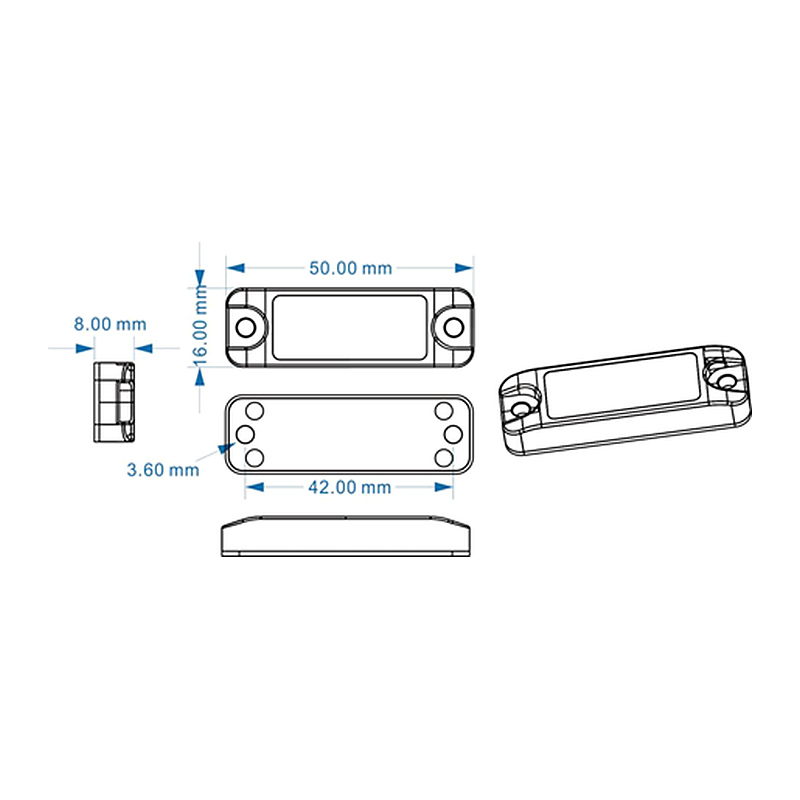

| Size (mm) | 50*16 mm,Thickness 8 mm |
| Weight | 7.5 g/pcs |
| Material | PC |
| Standard Packing | 100pcs/bag |
| Electronic Specifications | |
| Operating Frequency | 902~928 MHz |
| Chip Type | R6-P |
| EPC | 96bits |
| Reading Range | 1m~4m |
| Data Retention | 10 Years |
| Write Cycle Endurance | 100,000 cycles |
| Operating Temperature | -20 to +60℃ |
| Storage Temperature | -20 to +70℃ |
