Prelaminated inlay Combi
RFIDHY’s inlays are very robust and boast unequaled torsion / bending characteristics, extreme durability and optimized read / write performance. The inlays have a completely flat finish and bring numerous benefits to card manufacturers. We also offer option of combining two different chip technologies in one prelam, which is also called Prelaminated inlay Combi.
Leave your contact detail now to get the latest price!
Features
|
1. Materials
|
PVC, PET, PETG, PC |
|---|---|
|
2. Colour
|
White or Transparent |
|
3. Frequency
|

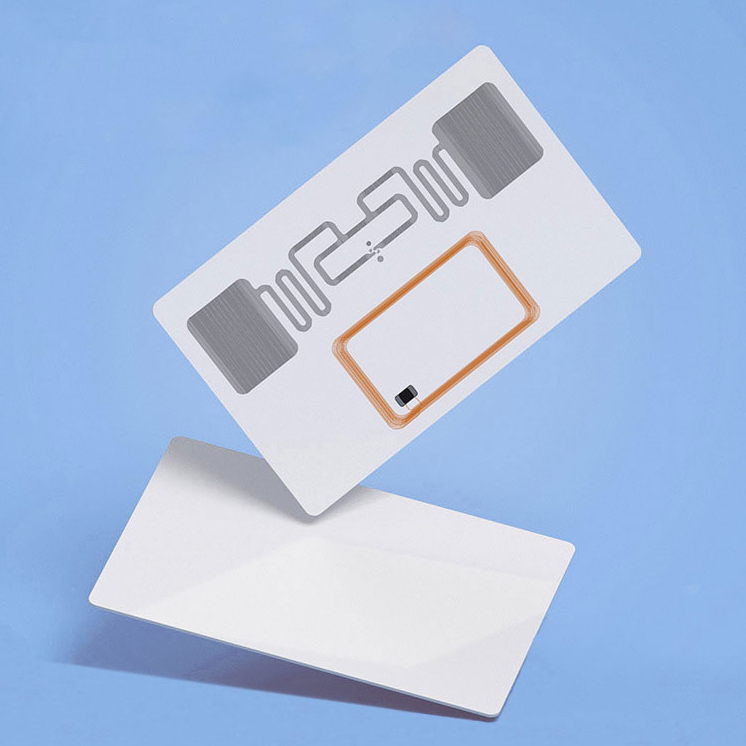

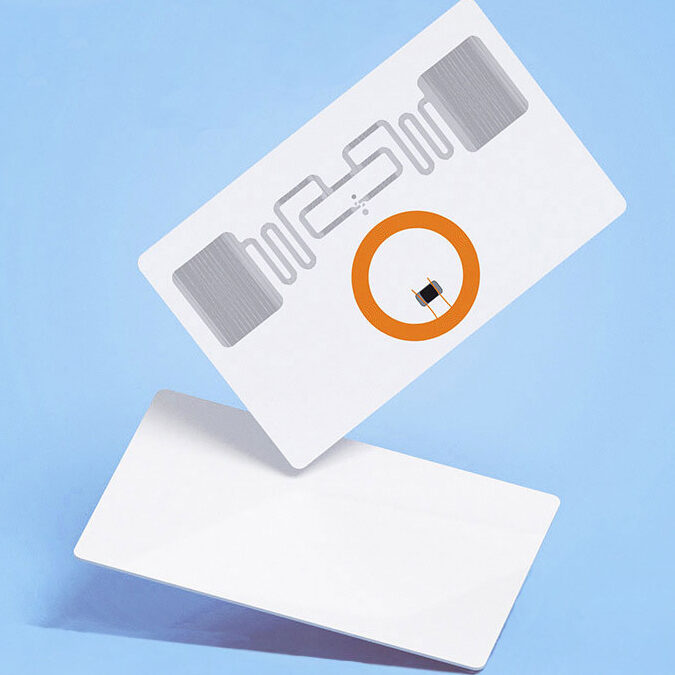

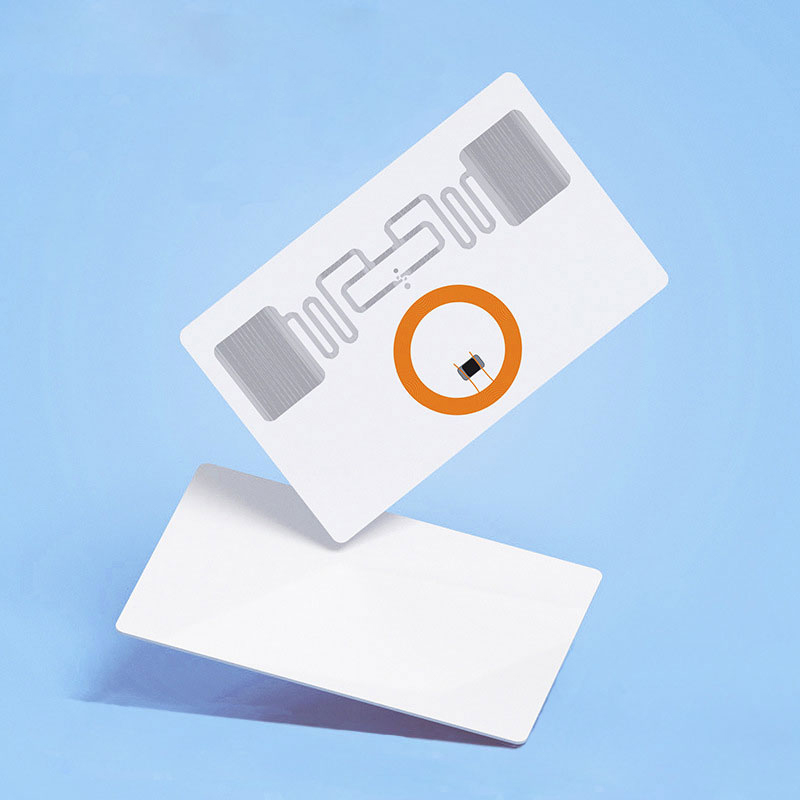

LF (125KHz), HF (13.56MHz), UHF (860-960MHz), or combi LF+HF, HF+UHF, LF+UHF |
|
4. Standard
|
ISO/IEC 11784/785, ISO14443A, ISO15693, ISO18000-6C |
|
5. Dimension
|
2*5, 4*5, 5*5, 4*6, 4*7, 4*8, 4*10, 3*6, 3*7, 3*8, 6*7, 6*8, 6*14 or customized. |
|
6. Thickness
|
HF: normal 0.45mm, 0.5mm, min.0.3mm LF: normal 0.6mm, Min. 0.5mm UHF: 0.6mm, 0.5mm |
|
7. Antenna
|
HF: AL Etching, Pre-winding Copper Coil, Altrasonic Embeding LF: Pre-winding Copper Coli, AL Etching UHF: AL Etching |
|
8. Read Range
|
more than 50mm with our reader |
|
9. Work Temperature
|
-25℃ to +55℃ |
|
10. Store Temperature
|
-25℃ to +65℃ |
|
11. Application
|
Access Control & Security, Time Attendance, Logical Access, Public Transport, City Card, etc. |
What we have:
- Variety of RFID IC on option (HF/LF) for alternation
- Different kinds of material, including PVC, PETG
- High reading distance optimized to each chip

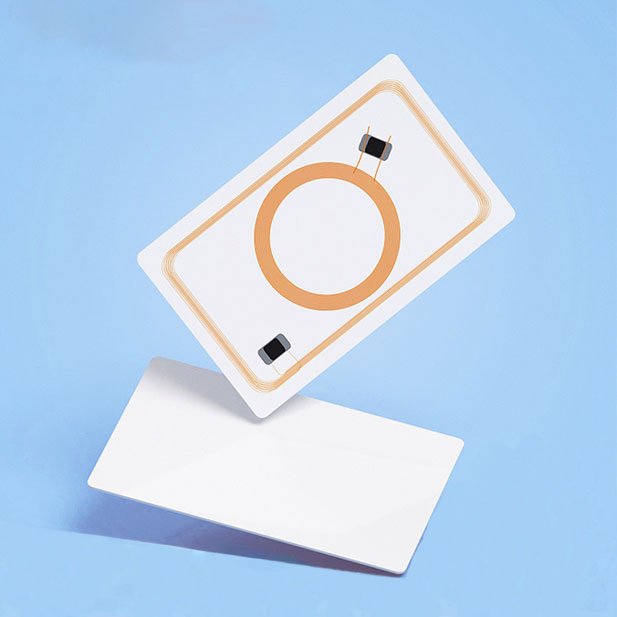

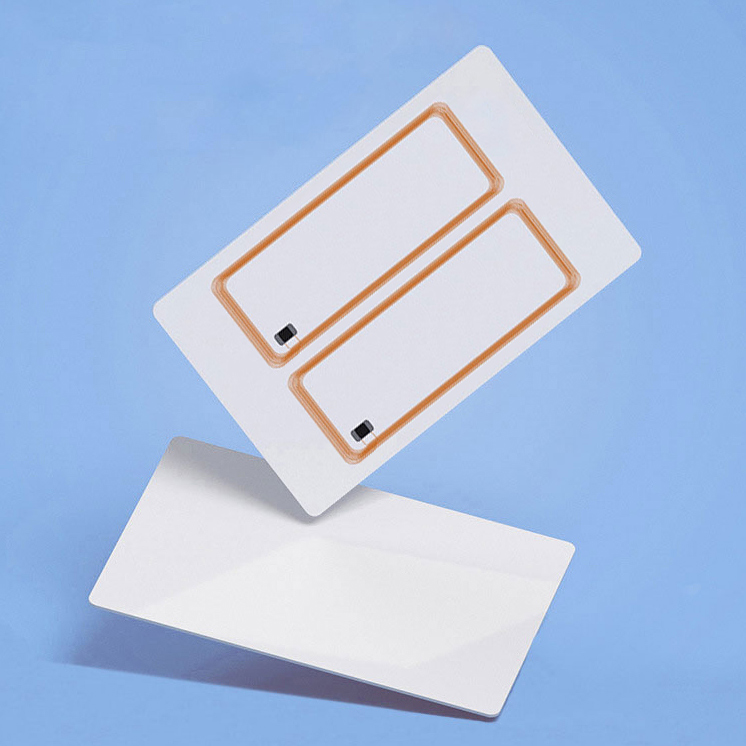

- Option of combining two different chip technologies in one prelam
- Different sheet formats are available 1×5, 2×4, 2×5, 3×6, 3×7, 3×8, 3×10, 4×8, 4×10, 6×8, up to 640×520 mm, others upon request
- Delivery time and guarantee
We can support more:
- Ability to Design different RFID antenna, in different RF protocol, and frequency.
- Research and design different encapsulation for special environments.
- Data encoding and encryption optioans.
- Transponder design base on correspond with customer reader.
- Individual process.
Available chip technologies
| Chip Type | Protocal | Capacity | Anti Collision | Function |
|
Available 125KHz Chip
|
||||
| TK4100 | / | 64bit | No | Read Only |
| EM4200 | / | 128bit | No | Read Only |
| T5577 | / | 330bit | No | Read/Write |
| Hitag 1 | ISO 11784/5 | 2kbit | No | Read/Write |
| Hitag 2 | ISO 11784/5 | 256bit | No | Read/Write |
| Hitag S 2048 | ISO 11784/5 | 2kbit | No | Read/Write |
|
Available 13.56MHz Chip
|
||||
| F08 | ISO14443A | 1KB | No | Read/Write |
| Ntag203/213/215/216 | ISO14443A | 168/180/540/924 byte | No | Read/Write |
| MIFARE® S50 | ISO14443A | 1KB | No | Read/Write |
| MIFARE® S70 | ISO14443A | 4KB | No | Read/Write |
| MIFARE® Plus | ISO14443A | 2KB/4KB | No | Read/Write |
| MIFARE® DESFire | ISO14443A | 2KB/4KB/8KB | No | Read/Write |
| MIFARE® Ultralight EV1 | ISO14443A | 640bit | No | Read/Write |
| MIFARE® Ultralight C | ISO14443A | 1184bit | No | Read/Write |
| I CODE SLI | ISO15693 | 128 byte | Yes | Read/Write |
| Ti2048 | ISO15693 | 2KB | Yes | Read/Write |
|
Available 860-960MHz Chip
|
||||
| Alien H3 | ISO18000-6C | 512 bit | Yes | Read/Write |
Other ICs are available upon request.
