What is an RFID Handheld Device?
An RFID handheld device is a portable RFID read/write device that typically integrates an RFID module, data processing system, display screen, and wireless communication module. Users can hold the device to scan tags, collect data, and transmit information remotely. Compared to fixed-mounted readers, RFID handheld devices offer advantages such as portability, flexibility, adaptability, e facilità d'uso, making them particularly suitable for scenarios requiring mobile identification.
With the accelerated development of the Internet of Things and digital management, RFID handheld devices have been widely applied in various fields such as warehousing and logistics, retail inventory management, gestione patrimoniale, identificazione degli animali, and production tracking.
Main Components of an RFID Handheld Device
Standard RFID handheld device typically includes the following core components:
Modulo RFID
Supports different frequency bands (ad es., UHF, HF, LF) to enable the identification and writing of RFID tags.
Main Control System
Most are based on Android or Windows operating systems, capable of data processing and application installation.
Display Screen and Touch Functionality
Provides an operational interface for viewing scan information, running software, and uploading data.
Antenna
Built-in or external antennas determine reading distance and angle, with some models supporting long-range scanning.
Battery System
Capable of continuous operation for over 8 Ore, with some models supporting fast charging or replacement of backup batteries.
Wireless Communication Module
Includes WiFi, Bluetooth, 4grammo, and so on., enabling remote data synchronisation and cloud uploads.
Main Advantages of RFID Handheld Devices
1. Portable and Flexible
Users can freely move the device to different areas to identify tags, unrestricted by fixed reader installations.
2. Multi-Functional Integration
Not only supports RFID reading, but can also be equipped with barcode scanning, camera, facial recognition, GPS positioning, and other modules for multi-purpose use.
3. High Compatibility
Supports multiple RFID protocols (such as EPC C1G2, ISO18000 - 6C), compatible with most tags and systems on the market.
4. Strong Adaptability
Suitable for various environments, such as high-temperature, low-temperature, humid, and outdoor industrial sites, with some models featuring an IP65 or higher protection rating.
5. Rapid deployment
No complex installation required; plug-and-play functionality makes it suitable for temporary tasks or on-site inspections.
Typical application scenarios for RFID handheld devices

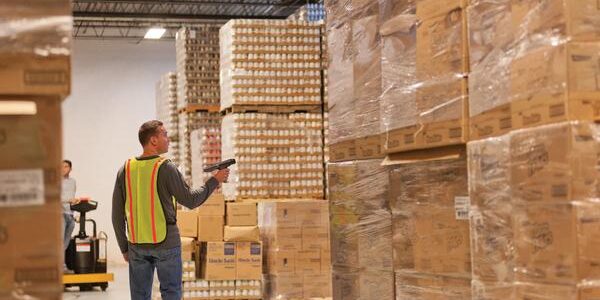

1. Warehouse inventory and in/outbound management
In logistics centres or warehouses, staff can use RFID handheld devices to quickly scan goods tags, enabling automatic identification and batch data entry, thereby reducing human error.
2. Fixed Asset Management
Enterprises, Scuole, government agencies, ecc. can use RFID handheld devices for periodic asset inventory (ad es., office equipment, furniture, IT facilities), ensuring assets are not lost and information is updated in real-time.
3. Retail and Store Inventory
Retail stores regularly use RFID handheld devices for shelf inventory, improving work efficiency while facilitating inventory analysis and restocking decisions.
4. Animal Identification and Tracking
In livestock farming or animal laboratories, handheld devices can read RFID tags implanted in animals or attached to ear tags to verify identity, record vaccination history, and monitor behaviour.
5. Manufacturing Traceability System
In factories, staff use RFID handheld devices to scan production component tags, enabling process traceability, quality control, and real-time reporting.
How to Choose the Right RFID Handheld Device?
When selecting an RFID handheld device, factors such as application requirements, budget, and usage environment should be considered, with a focus on the following dimensions:
Frequency Band and Protocol Support
Determine whether to use UHF (a lungo raggio), HF (medium-range), or LF (short-range) tecnologia, and whether ISO/IEC standard protocols are supported.
Reading Performance
This includes maximum reading distance, tag recognition rate, simultaneous reading capacity, and antenna gain.
Operating System and Application Compatibility
The Android system facilitates custom app development and secondary development; we recommend mainstream Android 9.0 or higher versions.
Housing and Protection Rating
Whether it meets IP65/IP67 ratings, is drop-resistant and impact-resistant, and suitable for outdoor or harsh environments.
Battery Life and Charging Methods
Whether it supports fast charging, hot-swappable batteries, and ultra-long standby time, suitable for all-day operations.
Expansion Functions
Does it support additional modules such as QR code/barcode scanning, NFC reading/writing, GPS positioning, and fingerprint recognition?
Common Specifications and Parameters for RFID Handheld Devices
| Parameter Category | Descrizione |
|---|---|
| Frequenza di funzionamento | UHF（860~960MHz）、HF（13.56MHz）等 |
| Sistema operativo | Android 9.0 / Android 11.0 / finestre |
| Visualizzazione | 4–6-inch high-definition touchscreen |
| Intervallo di lettura | UHF up to 1–10 metres, HF approximately 10 cm |
| Communication Module | Wifi, 4grammo, Bluetooth |
| Protection Rating | IP65–IP67, drop-resistant up to 1.5 metres |
| Battery Capacity | 4000 mAh–10000 mAh |
| Storage Capacity | RAM 2GB, ROM 16–64 GB |
Actual Use Case Sharing
Caso 1: Asset Inspection in a Large Manufacturing Enterprise
A large factory in Zhejiang Province deployed dozens of RFID handheld devices for inspecting fixed assets and production line equipment. Through regular inspections and tag comparisons, the system achieves real-time uploading of equipment dynamic data, fault warnings, and automatic dispatch of maintenance tasks.
Caso 2: Smart Inventory Counting in Retail Stores
A global apparel brand uses UHF RFID handheld devices for daily inventory counting operations in-store, completing the identification of thousands of items in just 3 hours—a 3x efficiency improvement—and integrates with inventory systems for smart restocking.
Caso 3: Animal Management in Livestock Farms
A dairy farm in Inner Mongolia has implanted LF glass tube tags in over 10,000 dairy cows, using RFID handheld devices for daily identification of cattle identities and recording of vaccination history and health status, thereby achieving an automated livestock farm management system.
Future Development Trends of RFID Handheld Devices
Future RFID handheld devices will become more intelligent, integrated, and networked, with key development directions including:
Integration of AI recognition and data analysis functions
Combination with 5G and edge computing to achieve ultra-high-speed uploads
Lightweight design for reduced weight and extended battery life
Modular structure to accommodate diverse industry needs
Use of eco-friendly materials to support sustainable development
sommario
As a key tool in modern intelligent identification, RFID handheld devices have played a critical role in multiple sectors such as logistics, Commercio al dettaglio, servizio sanitario, e produzione. With their portability, alta efficienza, and strong compatibility, they not only enhance operational convenience but also serve as a significant driving force for enterprise digital transformation. In futuro, as technology continues to advance, RFID handheld devices will further expand their application boundaries, becoming an indispensable component of the IoT ecosystem.
