Shanghai Huayuan designs and manufactures ISO RFID Card and RFID Tag. We also specialize in designing and engineering UHF Card and Tag for customers all over the world.
-
Our Products:
- --------------------
RFID Inlay/Prelam Products |
||

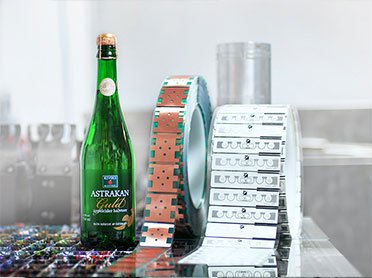

RFID card prelam,also called RFID card inlay,contactless card inlay,as core part of RFID card, we provide high-quality RFID prelam which they are suitable to ISO standard cards and made into different thickness and various shape for option.
We have advanced ultrasonic technology, and aluminum(AL) etching techniques, so the quality of our products is not only stable also durable and better Reading and writing performance. What's more, the products with the AL etching that can be extreme thin, suitable for special needs.
We have 3 different technique to produce PVC Card Inlay, pre-winding, ultrasonic and Flip. Among them, the cards made by Flip will have very flat surface, and very thinner thickness; for ultrasonic, it has the best working performance no matter for the reading distance, or the card's surface; also, the cost of pre-winding is more cheaper than ultrasonice and Flip.
| Ultra High Frequency(860~960MHZ) Chip: | NXP Ucode EPC Gen2/G2XL/G2XM Alien H2/H3 Impinj M3 |
| High Frequency (13.56MHz) Chips: | NXP Mifare 1K S50 / NXP Mifare 4K S70 / Mifare Ultralight NXP Mifare ICODE SLI-L(512 bit) / ICODE SLI(1024 bit) / ICODE SLI-S(2048 bit) NXP Mifare DESFire EV1 4K NXP Mifare DESFire EV1 8K Tag-it HF-1 Plus (TI2048, TI 2K) Mifare 1K-Compatible: FM11RF08(F08) /Huada S50 Mifare 4K-Compatible: FM11RF32 /Huada S70 |
| Low Frequency (125KHz) Chips: |
EM4100, EM4205, EM4305, EM4450, TK4100, T5567 / T5577 Compatible HID 26/37bit |
| Protocol: | ISO/IEC 7816, ISO14443A / 15693 / EPC Class1 Gen2/ISO 18000-6C |
| Inlay Material: | Antenna: AL,15um±3μm HF IC: Silicon, 150μm±10μm Substrate: PET, 55μm±5μm |
| Environmental Specification | Shelf Life 5 Years Recommended: -25C to +50C Storage Condition: 20% to 90%RH Operating Temp: -40C to +65C |
| Read/write Times: | 100000 times |
| Reading Distance | 3-100CM (According to the design of the antenna of the reader) |
| Card size: Thickness: |
85.5*54mm or as request 0.2-0.94mm |
| Material: | PVC/PET/Adhesive Sticker |
| Weight: | (In credit card size) 6KG for 1000pcs |
| Application: | Public Transportation, Access management, E-tickets, Logistic and supply management, Production manufacturing and assembly, Windshield label, Document tracking, Laundry management, Library management, Animal identity and so on |
| PICs | Customization Support | ||||||||
 |
| ||||||||
